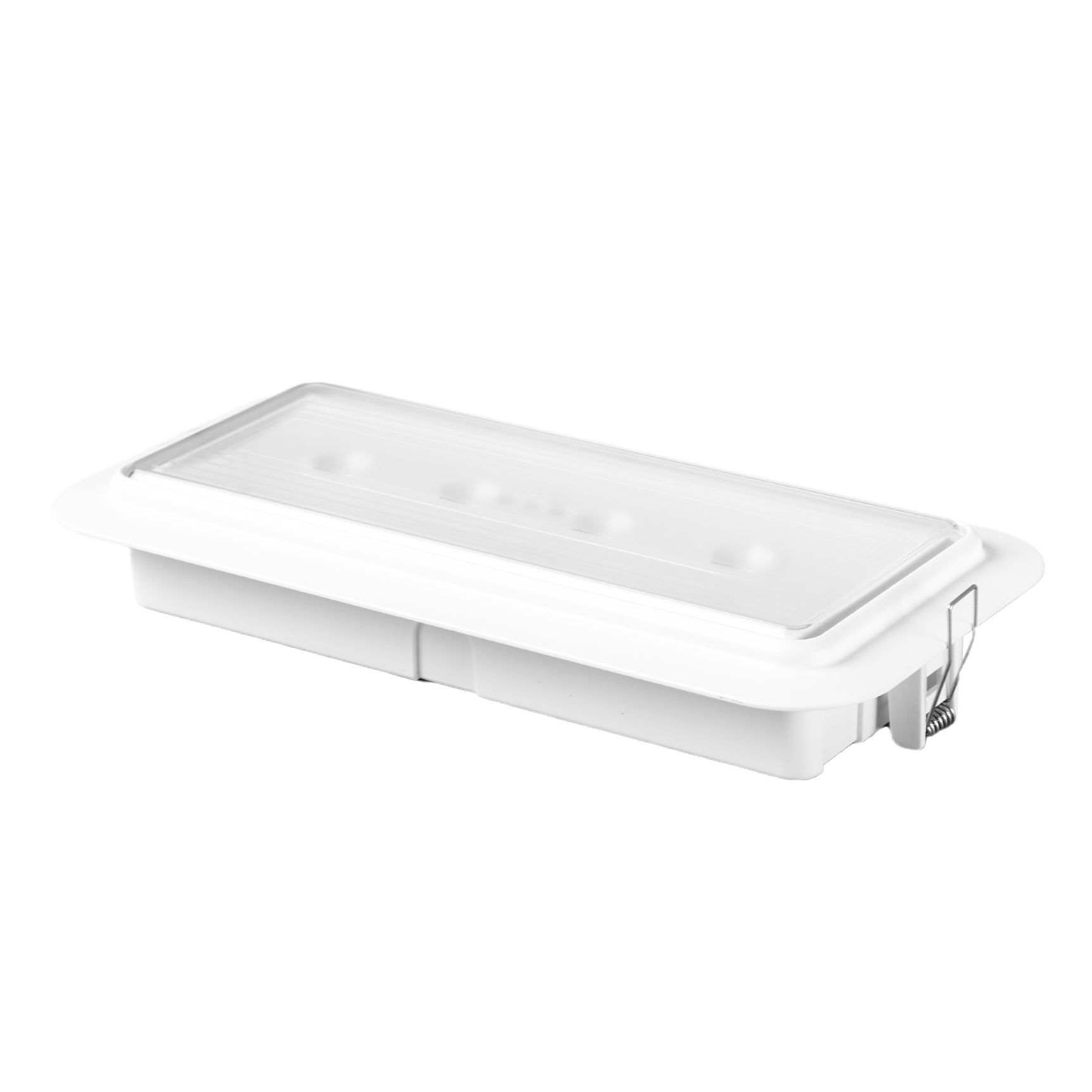

Type : Bulkhead Series
Model : LD 2101

Details :

Function

  • nonmaintained emergengcy with auto-selfcheck function
  • overcharg and overdischarge protection
  • Red Light: charging indicator
  • Green Light: indicator with AC on, during monthly check: 1Hz flicker, yearly check: 3Hz flicker
  • Yellow Light: abnormal indicator,battery abnormal: 1Hz flicker,LED load abnormal: 3Hz flicker,low battery: on

Material

  • Body: ABS, Len:PC

Input Voltage

  • 220-240V,50/60Hz



Specification

Model Input Voltage Lamp Power at AC Normal Lamp Power in Emergengcy Color Temperature CRI Lumen Output
LD 2101 220-240V,50/60Hz 1.2W max @220V 1.0W max 6500K 80 70lm
  Emergengcy Conversion Voltage Beam Angle Charging duration Emergengcy Duration LED Battery
  138±3V 100degree 20hrs 1hrs 2835,4pcs NiCd,2.4V 800mAH
   Life Warranty
  15000hrs 2years

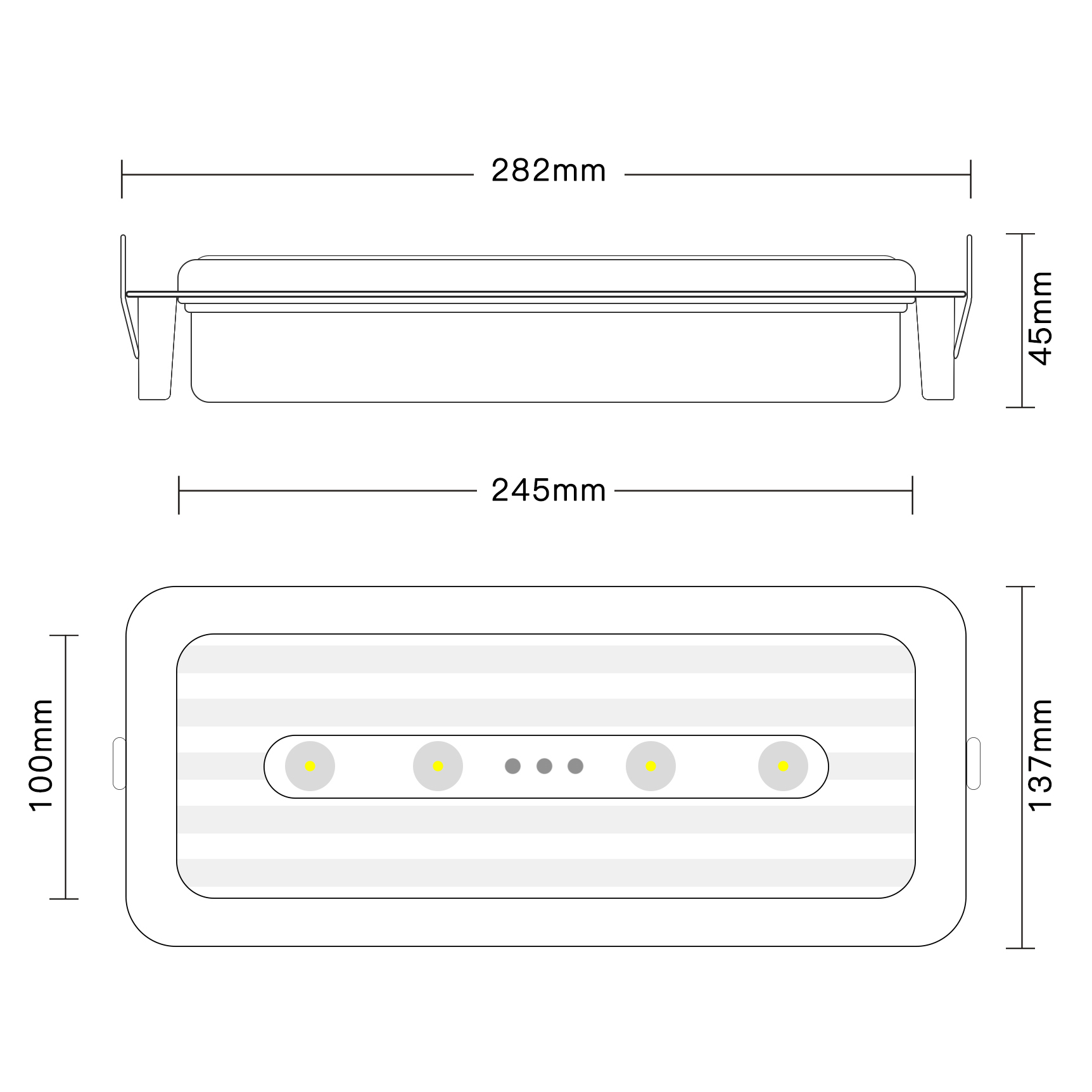

Dimension



Size

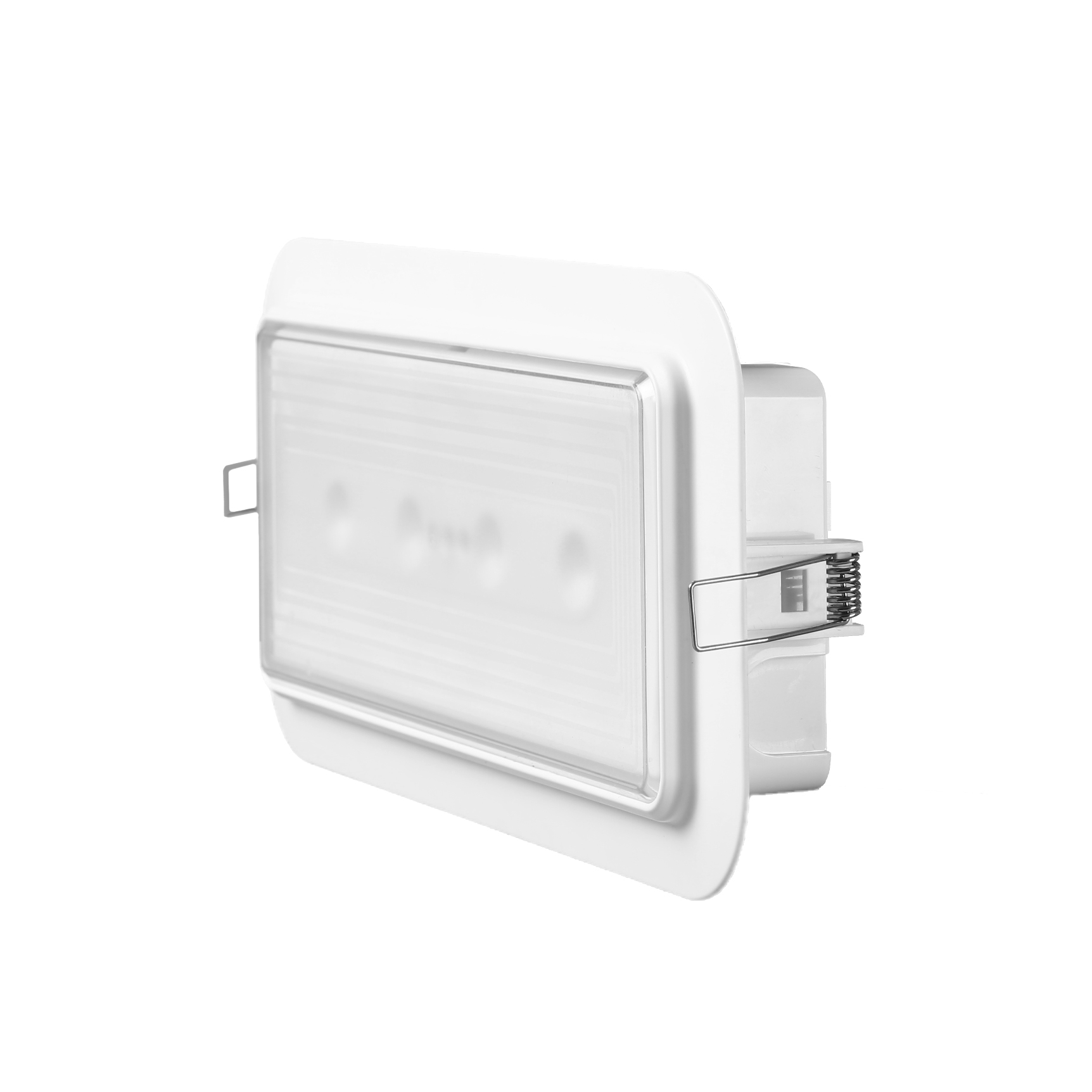

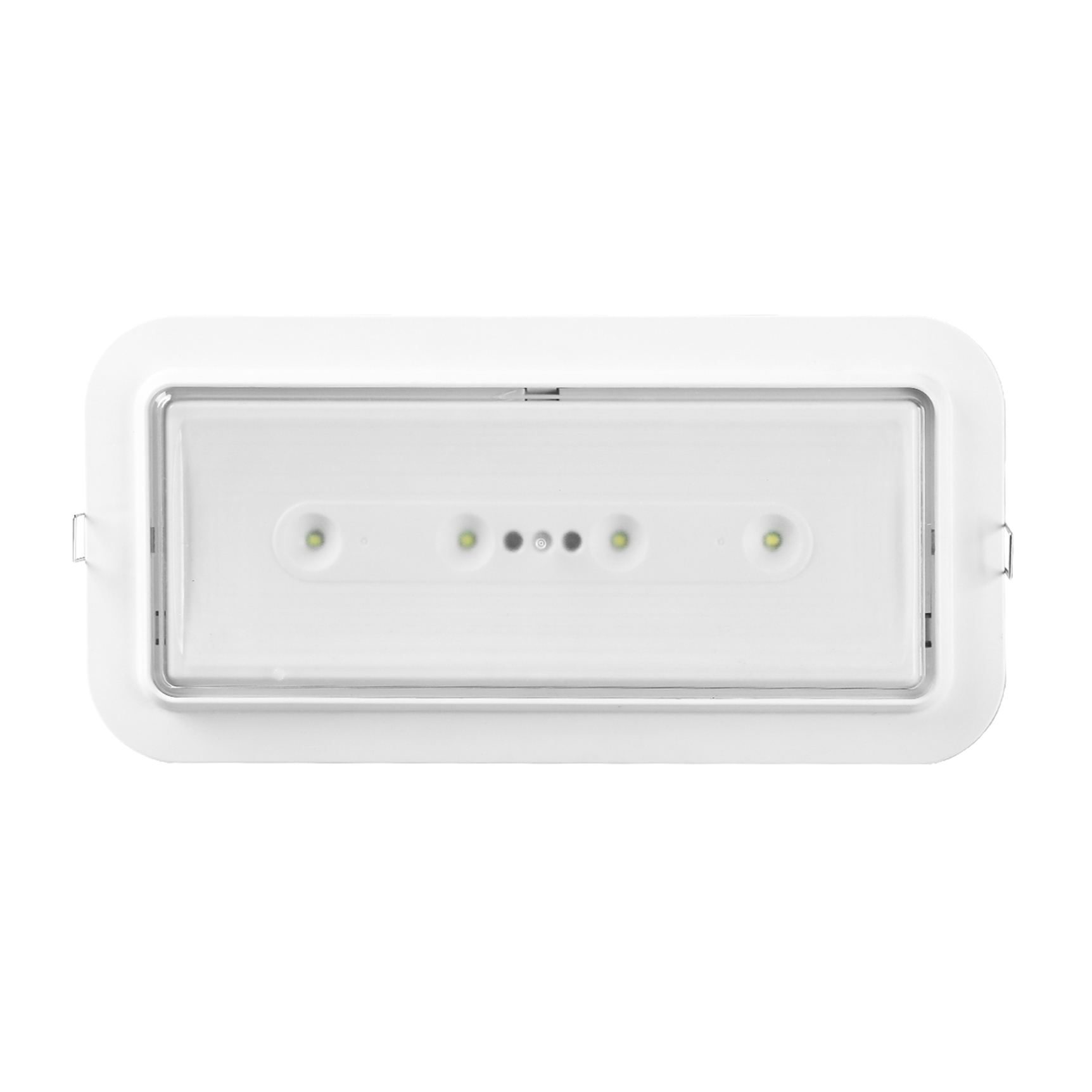

  • 245*100*45mm(mouting frame:282*137mm)
